Origin

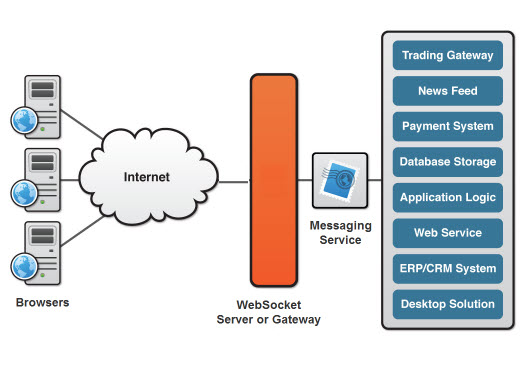

WebSocket is design for intercommuncation[full duplex].
The http protocol is build in TCP[Transfer level], only one side can send or recevie.
When job is done, request will close the TCP connection.

If we want a long time alive connection.

  1. Http’s keep-alive head property is not design for long connection.
    It’s design for increase effciency, in avoid 3 times handclasp.
    When out of time, server will still close it.
  2. Http loop request. it’s very common strategy, but very low effciency.
  3. Make a TCP like connection, and keep it not be break.

WebSocket is just like TCP UDP work in Transfer level, a socket in origin.

Connection

Create a server service

1
2
3
4
5
6
7
8
9
10
11
12
13
14
let http = require("http");
const hostname = "127.0.0.1";
const port = "9090";

// create a service
let server = http.createServer((req, res) => {
    console.log("recv request");
    console.log(req.headers);
});

// create a listener
server.listen(port, hostname, () => {
    console.log(`Server running at ${hostname}:${port}`);
});

Ceate a broser client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<!DOCType html>
<html>
<head>
    <meta charset="utf-8">
</head>
<body>
<script>
!function() {
    const socket = new WebSocket('ws://127.0.0.1:9090');
    socket.onopen = function (event) {
        console.log('opened');
        socket.send('hello, this is from client tiger');
    };
}();
</script>
</body>
</html>

Service

Nodejs do not execute the recall function. Because another upgrade event.

1
2
3
server.on("upgrade", (request, socket, head) => {
    console.log(request.headers);
}
  • If make no response then connection closed before recevie headshake:

In request header, sec-websocket-key is used to verify server is legal.

1
2
3
4
5
socket.write('HTTP/1.1 101 Web Socket Protocol Handshake\r\n' +
        'Upgrade: WebSocket\r\n' +
        'Connection: Upgrade\r\n' +
        `Sec-WebSocket-Accept: \r\n` +
        '\r\n');

  • If the server response sec-websocket-key is not right, then data is dirty:

Calculate

Sec-WebSocket-Accept = base64(sha1(Sec-Websocket-key + GUID))

1
2
3
# command
npm init
npm install sha1 --save
1
2
3
4
5
6
7
8
9
10
11
12
13
14
let sha1 = require('sha1');
server.on("upgrade", (request, socket, head) => {
    let secKey = request.headers['sec-websocket-key'];
    // RFC 6455 (GUID)
    const UNIQUE_IDENTIFIER = '258EAFA5-E914-47DA-95CA-C5AB0DC85B11';
    // calc sha1 base64
    let shaValue = sha1(secKey + UNIQUE_IDENTIFIER),
        base64Value = Buffer.from(shaValue, 'hex').toString('base64');
    socket.write('HTTP/1.1 101 Web Socket Protocol Handshake\r\n' +
        'Upgrade: WebSocket\r\n' +
        'Connection: Upgrade\r\n' +
        `Sec-WebSocket-Accept: ${base64Value}\r\n` +
        '\r\n');
});

ps. Look at the eyes and meet the right person :)

Recevie

Frame in documents is like this :

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
0               1               2               3
0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
+-+-+-+-+-------+-+-------------+-------------------------------+
|F|R|R|R| opcode|M| Payload len |    Extended payload length    |
|I|S|S|S|  (4)  |A|     (7)     |             (16/64)           |
|N|V|V|V|       |S|             |   (if payload len==126/127)   |
| |1|2|3|       |K|             |                               |
+-+-+-+-+-------+-+-------------+ - - - - - - - - - - - - - - - +
|     Extended payload length continued, if payload len == 127  |
+ - - - - - - - - - - - - - - - +-------------------------------+
|                               |Masking-key, if MASK set to 1  |
+-------------------------------+-------------------------------+
| Masking-key (continued)       |          Payload Data         |
+-------------------------------- - - - - - - - - - - - - - - - +
:                     Payload Data continued ...                :
+ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +
|                     Payload Data continued ...                |
+---------------------------------------------------------------+

  1. first level is the frame’s head
    • FIN finish if the bit is 1
    • RSV1 RSV2 RSV3 reserve bit some application use it to show wheather data is compressed.
    • opcode operation code 0001 is text
    • MASK mask the data space if the bit is 1
    • Payload len data’s byte length
    • Extended ... if the length cross 2^7[127], use other 8 bytes to store length.
  2. second level is masking-key space 4 bytes
  3. third lecel is data space ? bytes
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|Opcode  | Meaning                             | Reference |
-+--------+-------------------------------------+-----------|
| 0      | Continuation Frame                  | RFC 6455  |
-+--------+-------------------------------------+-----------|
| 1      | Text Frame                          | RFC 6455  |
-+--------+-------------------------------------+-----------|
| 2      | Binary Frame                        | RFC 6455  |
-+--------+-------------------------------------+-----------|
| 8      | Connection Close Frame              | RFC 6455  |
-+--------+-------------------------------------+-----------|
| 9      | Ping Frame                          | RFC 6455  |
-+--------+-------------------------------------+-----------|
| 10     | Pong Frame                          | RFC 6455  |
-+--------+-------------------------------------+-----------|

In browser if refresh the window, websocket will send the close frame:

1
2
3
4
5
6
7
buffer len =  8
<Buffer 88 82 34 b3 e3 25 37 5a>
maskFlag = 1
pLength = 2
maskKey = 52,179,227,37[34 B3 E3 25]
payloadHex  = 03 E9
payloadText = Ȃ

Analysis

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
socket.on('data', buffer => {
    console.log('buffer len = ', buffer.length);
    console.log(buffer);

    // ------------------------

    let bitBuffer = new BitBuffer(buffer);
    let maskFlag = bitBuffer._getBit(8);
    console.log('maskFlag = ' + maskFlag);

    let payloadLen = bitBuffer.getBit(9, 7),
        maskKeys = bitBuffer.getMaskingKey(16);

    console.log('pLength = ' + payloadLen);
    console.log('maskKey = ' + maskKeys +
    '[' + bitBuffer.bytesToHexString(maskKeys[0]) + ' ' +
    bitBuffer.bytesToHexString(maskKeys[1]) + ' ' +
    bitBuffer.bytesToHexString(maskKeys[2]) + ' ' +
    bitBuffer.bytesToHexString(maskKeys[3]) + ']');

    let payloadText = bitBuffer.getXorString(48 / 8, payloadLen, maskKeys);
    console.log('payloadText = ' + payloadText);

});
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
class BitBuffer {

    constructor (buffer) {
        this.buffer = buffer;
        this.hexChar = ['0', '1', '2', '3', '4', '5',
            '6', '7', '8', '9', 'A', 'B', 'C', 'D', 'E', 'F'];
    }
    // fetch xth bit content
    _getBit (offset) {
        let byteIndex = offset / 8 >> 0,  // target utf-8 character
            byteOffset = offset % 8;      // target bit offset in character
        // readUInt8 read the nth character data
        let num = this.buffer.readUInt8(byteIndex) & (1 << (7 - byteOffset));
        return num >> (7 - byteOffset);
    }

    // [from, length]
    getBit (offset, len = 1) {
        let result = 0;
        for (let i = 0; i < len; i++)
            result += this._getBit(offset + i) << (len - i - 1);
        return result;
    }

    // masking-key
    getMaskingKey (offset) {
        const BYTE_COUNT = 4;
        let masks = [];
        for (let i = 0; i < BYTE_COUNT; i++)
            masks.push(this.getBit(offset + i * 8, 8));
        return masks;
    }

    // get plaintext
    getXorString (byteOffset, byteCount, maskingKeys) {
        let text = '';
        let hex  = '';
        for (let i = 0; i < byteCount; i++) {
            let j = i % 4;
            // get origin utf-8 encoded data though exclusive or
            let transformedByte = this.buffer.readUInt8(byteOffset + i)
                                      ^ maskingKeys[j];
            // put utf-8 bytes to ascii char
            text += String.fromCharCode(transformedByte);
            hex += this.bytesToHexString(transformedByte) + ' ';
        }
        console.log('payloadHex  = ' + hex);
        return text;
    }

    // char to 2-hex String
    bytesToHexString(num) {
        let text = '';
        text += this.hexChar[num >>> 4 & 0xf];
        text += this.hexChar[num & 0xf];
        return text;
    }
}

socket.send(‘hello, this is from client tiger’);

1
2
3
4
5
6
7
8
9
buffer len =  38
<Buffer 81 a0 f1 3d 90 39 99 58 fc 55 9e 11 b0 4d 99 54 e3 19 9
8 4e b0 5f 83 52 fd 19 92 51 f9 5c 9f 49 b0 4d 98 5a f5 4b>
maskFlag = 1
pLength = 32
maskKey = 241,61,144,57[F1 3D 90 39]
payloadHex  = 68 65 6C 6C 6F 2C 20 74 68 69 73 20 69 73 20 66 7
2 6F 6D 20 63 6C 69 65 6E 74 20 74 69 67 65 72
payloadText = hello, this is from client tiger

Toke last 4 bytes for example:
origin data is 98 5a f5 4b, masking key is F1 3D 90 39

1
2
3
4
5
98 5a f5 4b XOR F1 3D 90 39 = 69 67 65 72
69 = 'i'
67 = 'g'
65 = 'e'
72 = 'r'

Last issue

In application websocket implements ping/pong[9/10] is used to make sure connection alive.
Client ping server every 30s, server response pong message frame.
If server not recevie client’s ping frame in 1 minute, it will close the connnection.

Broser websocket modual not implemented this mechanism.
If long connection is needed, you need loop ping frame by yourself.
